Product Description

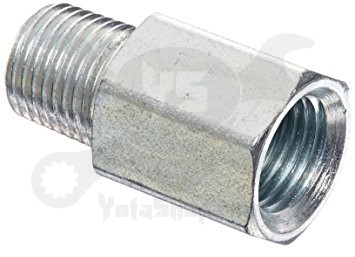

Toyota to Aftermarket Oil Pressure Gauge Adapter
1/8" National Pipe Thread to 1/8" British Standard Pipe (Found on most Toyota's)
This adapter threads into Toyota blocks that have a 1/8"-28 BSP thread for oil pressure sending units. If you are installing an aftermarket oil pressure gauge that has a 1/8" NPT thread into a Toyota engine block you need this adapter. The thread are very close but not the same, trying to screw an aftermarket gauge into your block will do damage or leak. We use this adapter on Toyota 20R, 22R, 22RE, 22RET, 3VZ-E, 2RZ-FE, 3RZ-FE, 5VZ-FE and many more Toyota engine blocks that have the factory 1/8"-28 BSP thread pitch.
Product Videos
Custom Field
Product Reviews
18 Reviews Hide Reviews Show Reviews
-
Oil pressure adapter and T fitting
I received both fittings without damage but have yet to install them. I will be installing an Autometer oil pressure gauge while retaining the idiot light.
-
OIL PRESSURE GAUGE ADAPTER - Fits fine in my 2RZ
I am building a 2RZ-FE and needed to adapt to an older style Oil sender and this little fitting did the trick. Works.
-
Oil Pressure Gauge Adapter
The exact part I needed to complete my project.
-
toyota oil pressure guage adapter
great part , fit perfect
-
Pressure gauge adapter
Part is well-made, fits perfectly, and does not leak!
-
Quality
Good quality worked perfect for my turbo application.
-
Quality
Good quality worked perfect for my turbo application.
-
Quality product
As a career pipe fitter, I recognized the subtle difference between npt (national pipe threads) and the threads used on Japanese and European pipe threads. Get them mixed up, and you could potentially damage the block or create a leak. The Toyota dealership didn’t even know what threads to use! This strong steel adapter started by hand and works like a charm!
-
Oil sender adapter
Works great now I have piece of mind about my oil pressure on my new engine. Will end up ordering more for my next projects.
